# Using Mobile Builds from Xcode

https://mobilebuilds.app/guides/using-mobile-builds-from-xcode/
Last updated: 2026-09-06


Xcode's coding assistant can read your Xcode Cloud builds directly, through a
plug-in that points it at the Mobile Builds MCP server. Ask about a failing run
in the same window you're fixing it in, without reaching for a browser or your
phone.

## Before you start

- **Xcode 26.3 or later** — earlier versions have no plug-ins.
- **Mobile Builds running and unlocked** on the same Mac, signed in to App Store
  Connect. The plug-in reads through the app and holds no credentials of its
  own.
- **The MCP server helper** — a menu bar app you download from Mobile Builds'
  Settings and launch once. See [Installing the MCP server helper](/guides/installing-the-mcp-server-helper/).
- Without [Mobile Builds+](/pricing/) the assistant sees today's builds only,
  the same limit the app has.

## Add the plug-in

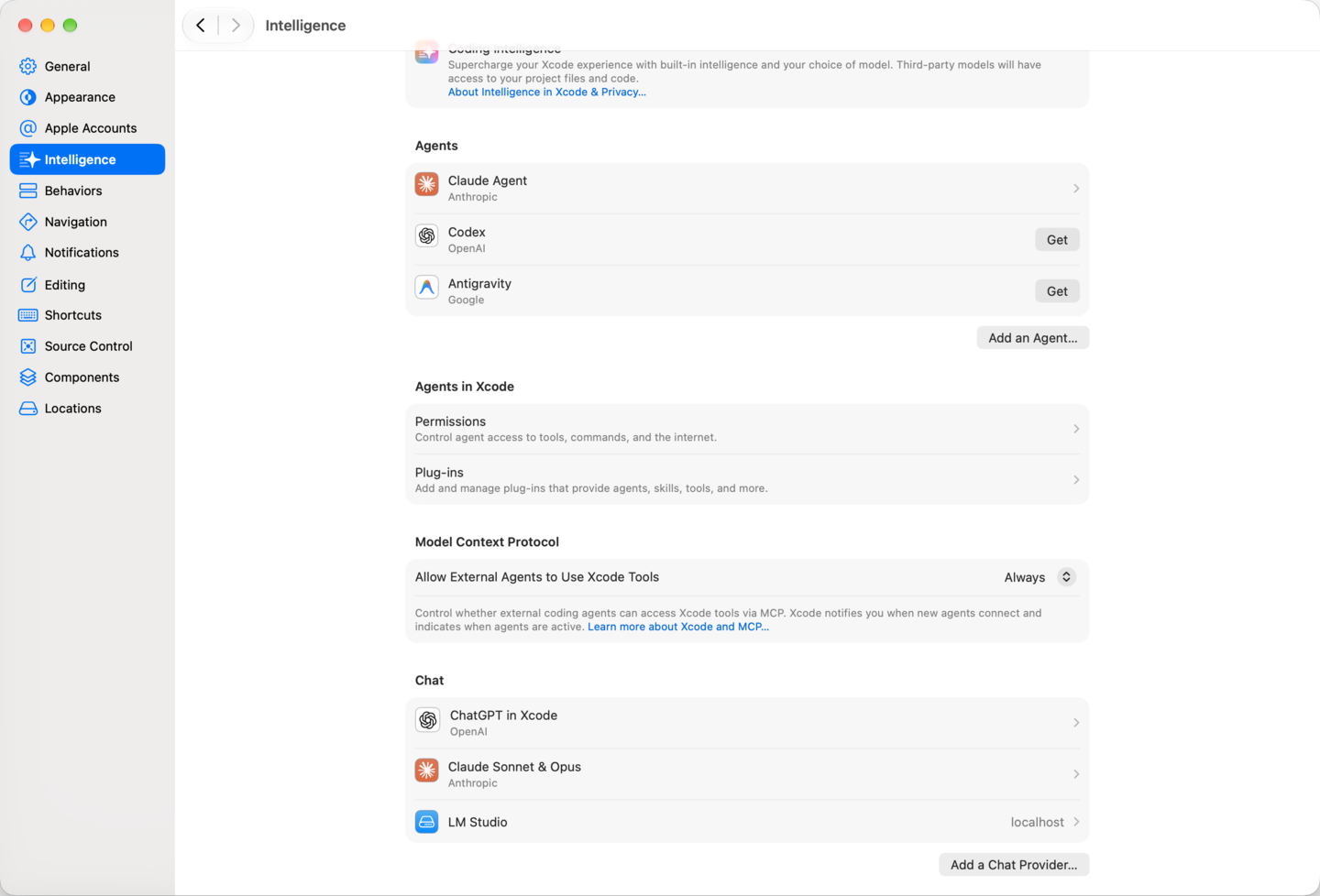

Open **Settings → Intelligence**. Plug-ins live under **Agents in Xcode**,
next to Permissions.

<figure class="screenshot screenshot-wide">
  <img src="/assets/guides/using-mobile-builds-from-xcode/01-intelligence-settings.png" alt="Xcode's Intelligence settings with the Plug-ins row under Agents in Xcode">
</figure>

The **Model Context Protocol** section further down the same pane is the
opposite direction — outside agents reaching into Xcode's own tools — and has
nothing to do with this.

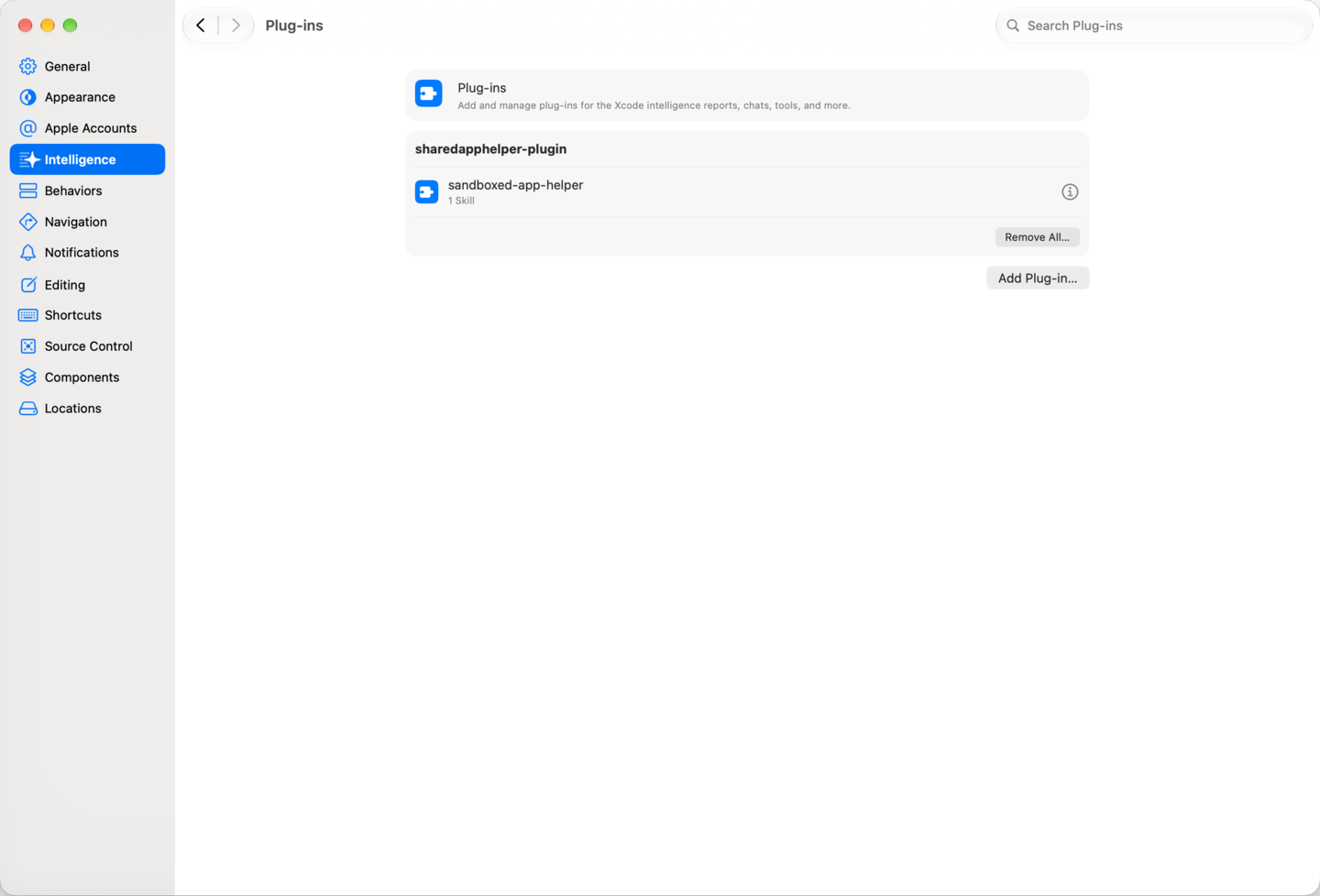

Choose **Plug-ins**, then **Add Plug-in…**.

<figure class="screenshot screenshot-wide">
  <img src="/assets/guides/using-mobile-builds-from-xcode/02-plug-ins.png" alt="The Plug-ins pane in Xcode settings with an Add Plug-in button">
</figure>

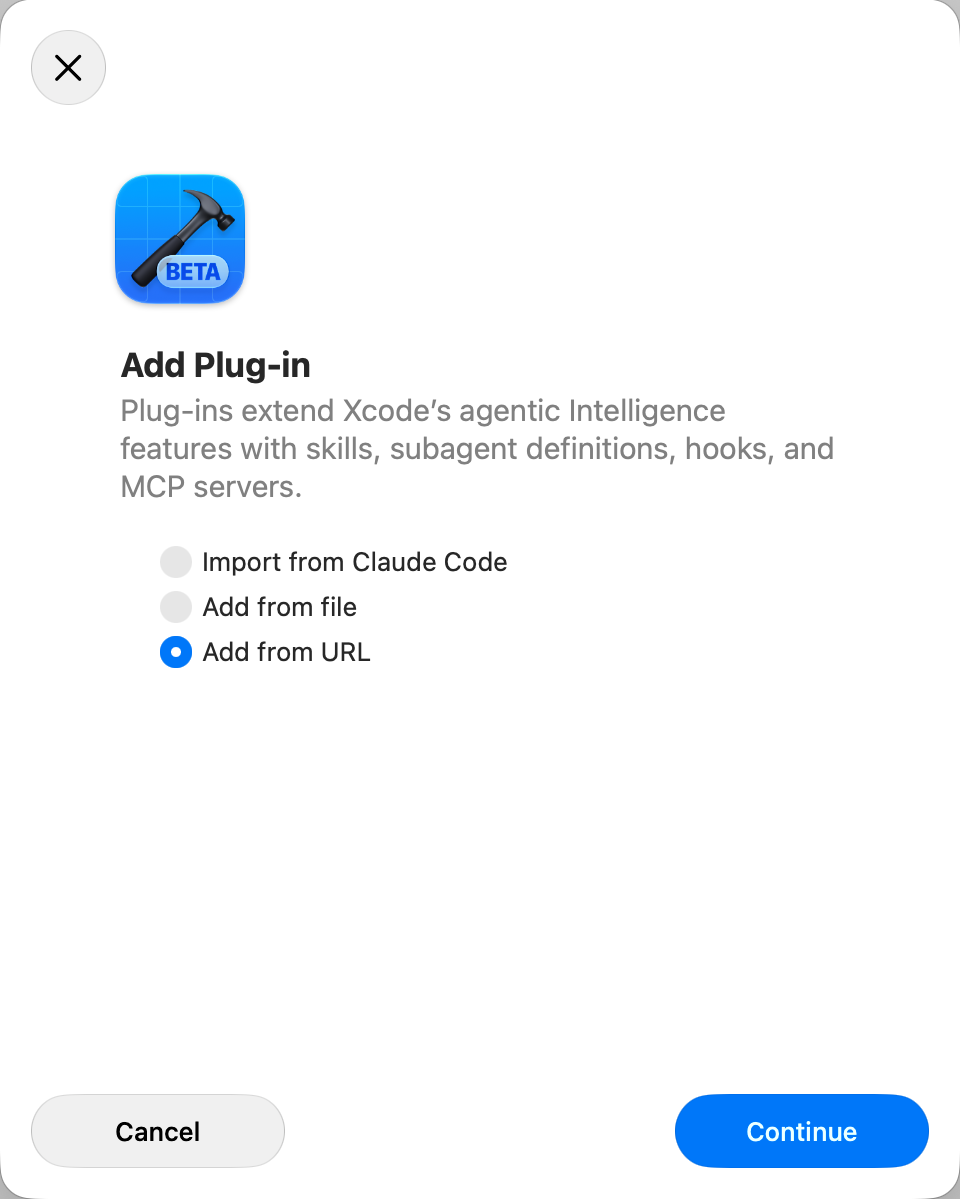

Pick **Add from URL**.

<figure class="screenshot">
  <img src="/assets/guides/using-mobile-builds-from-xcode/03-add-plug-in.png" alt="Add Plug-in dialog offering Import from Claude Code, Add from file and Add from URL">
</figure>

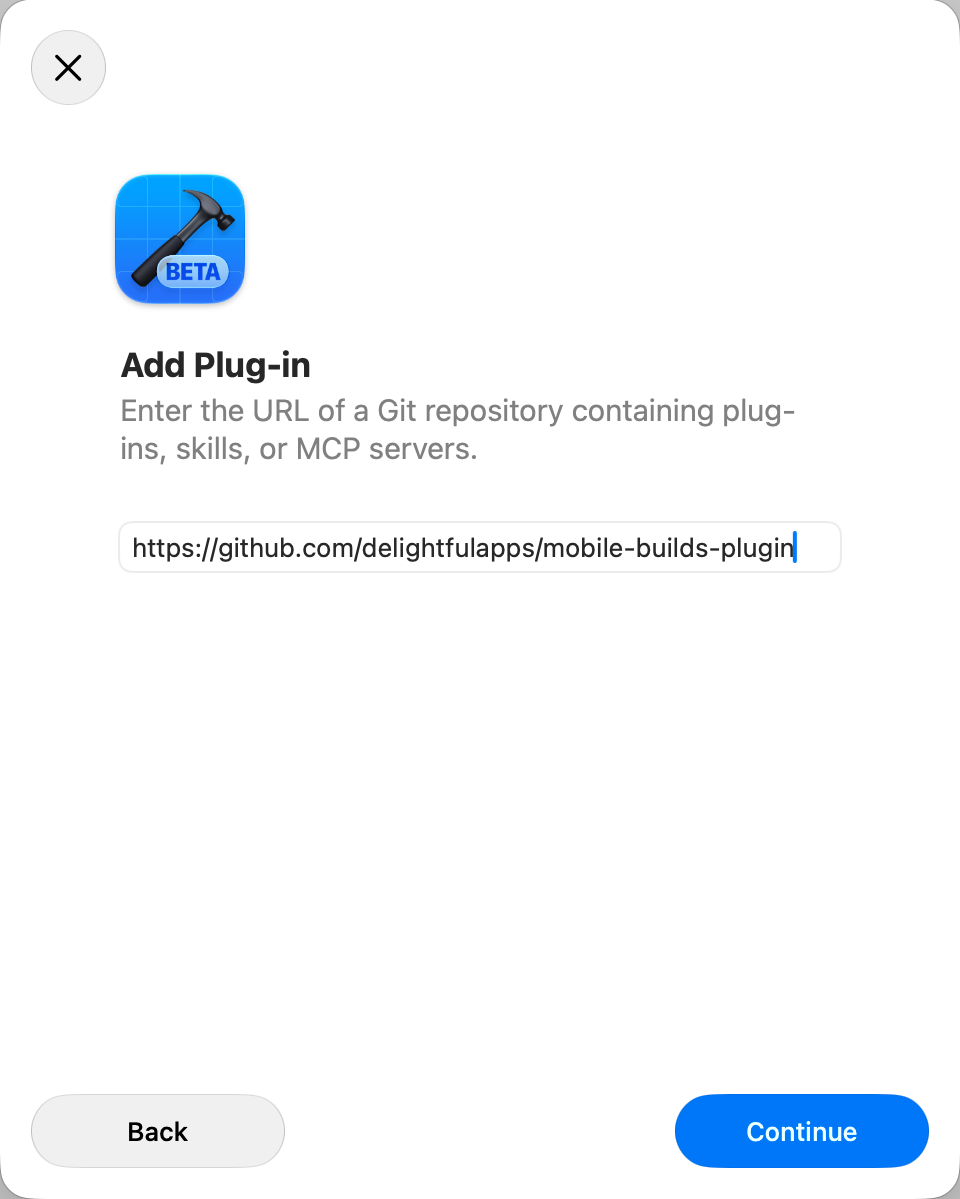

Enter `https://github.com/delightfulapps/mobile-builds-plugin` and continue.

<figure class="screenshot">
  <img src="/assets/guides/using-mobile-builds-from-xcode/04-add-plug-in-url.png" alt="Add Plug-in dialog with the Mobile Builds plug-in repository URL typed into the field">
</figure>

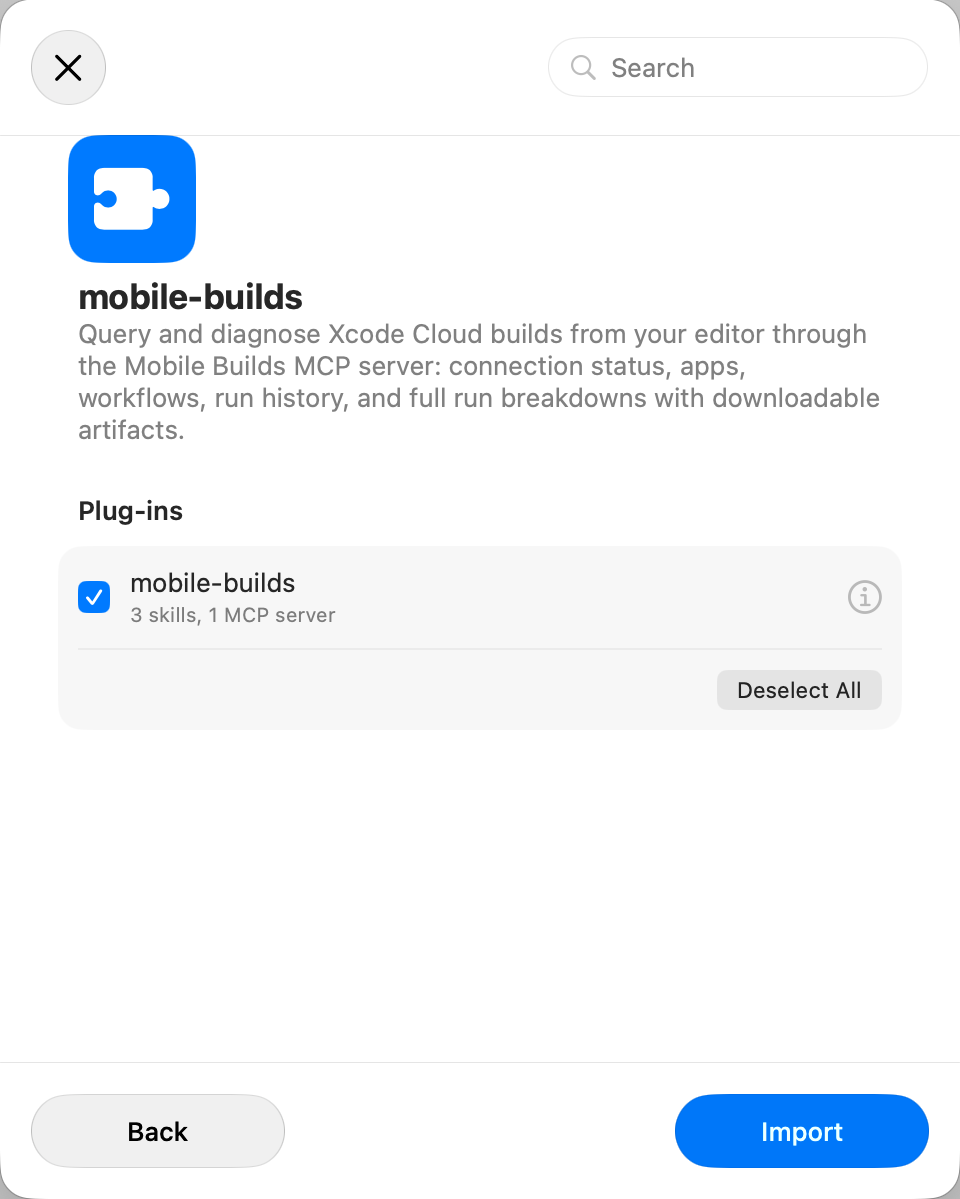

Xcode reads the repository and shows what it found: one plug-in, `mobile-builds`,
carrying three skills and one MCP server. Leave it ticked and choose **Import**.

<figure class="screenshot">
  <img src="/assets/guides/using-mobile-builds-from-xcode/05-plug-in-select.png" alt="Add Plug-in dialog listing the mobile-builds plug-in with three skills and one MCP server, ready to import">
</figure>

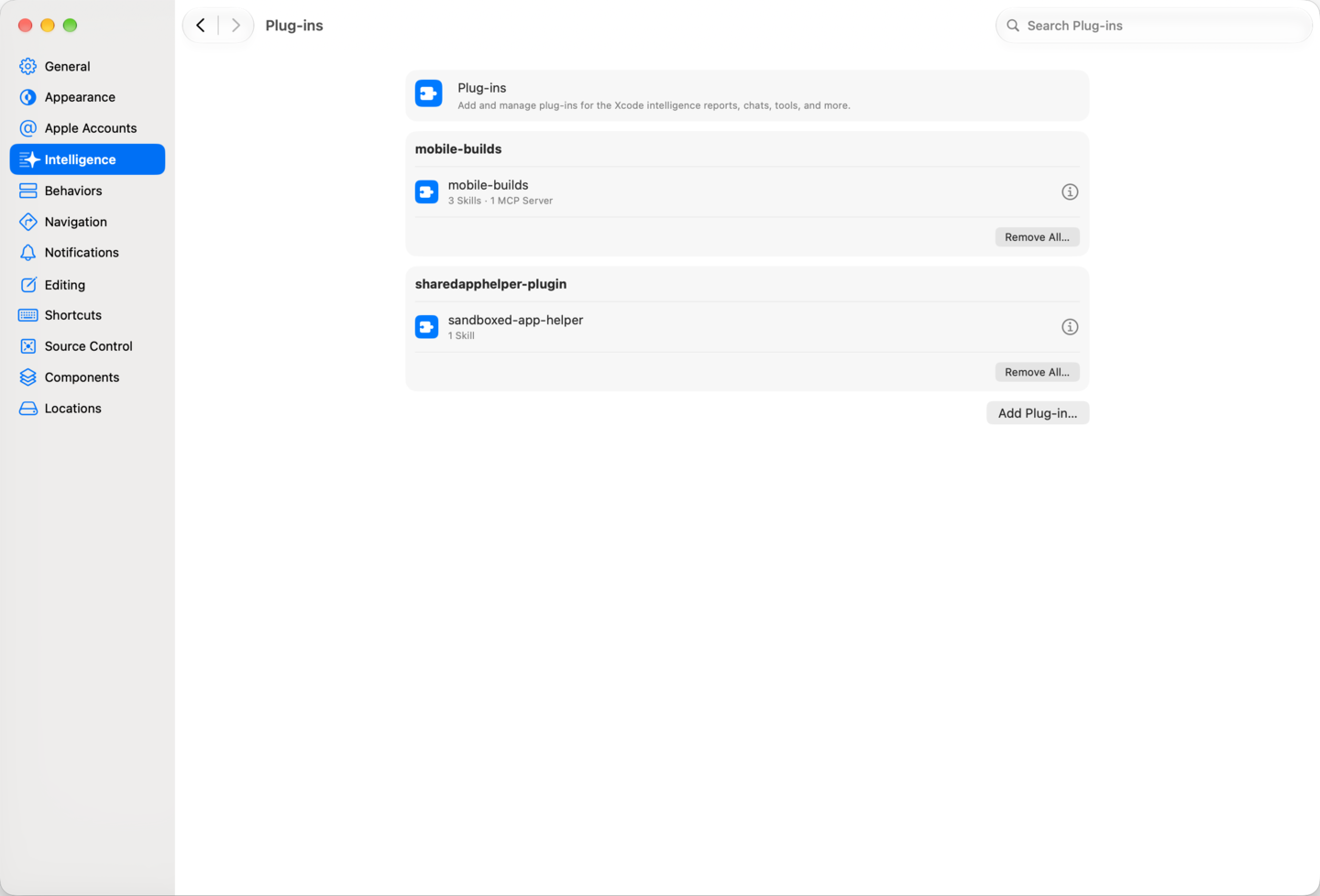

It then sits in the Plug-ins list, and the MCP server is registered along with
it.

<figure class="screenshot screenshot-wide">
  <img src="/assets/guides/using-mobile-builds-from-xcode/06-plug-in-added.png" alt="The Plug-ins pane listing mobile-builds with three skills and one MCP server">
</figure>

## Check it connected

Ask the assistant "is Mobile Builds connected?". It walks the chain — the app,
the helper, the MCP server, the plug-in — and names whichever part isn't
answering, rather than handing you a bare connection error.

## What you can ask

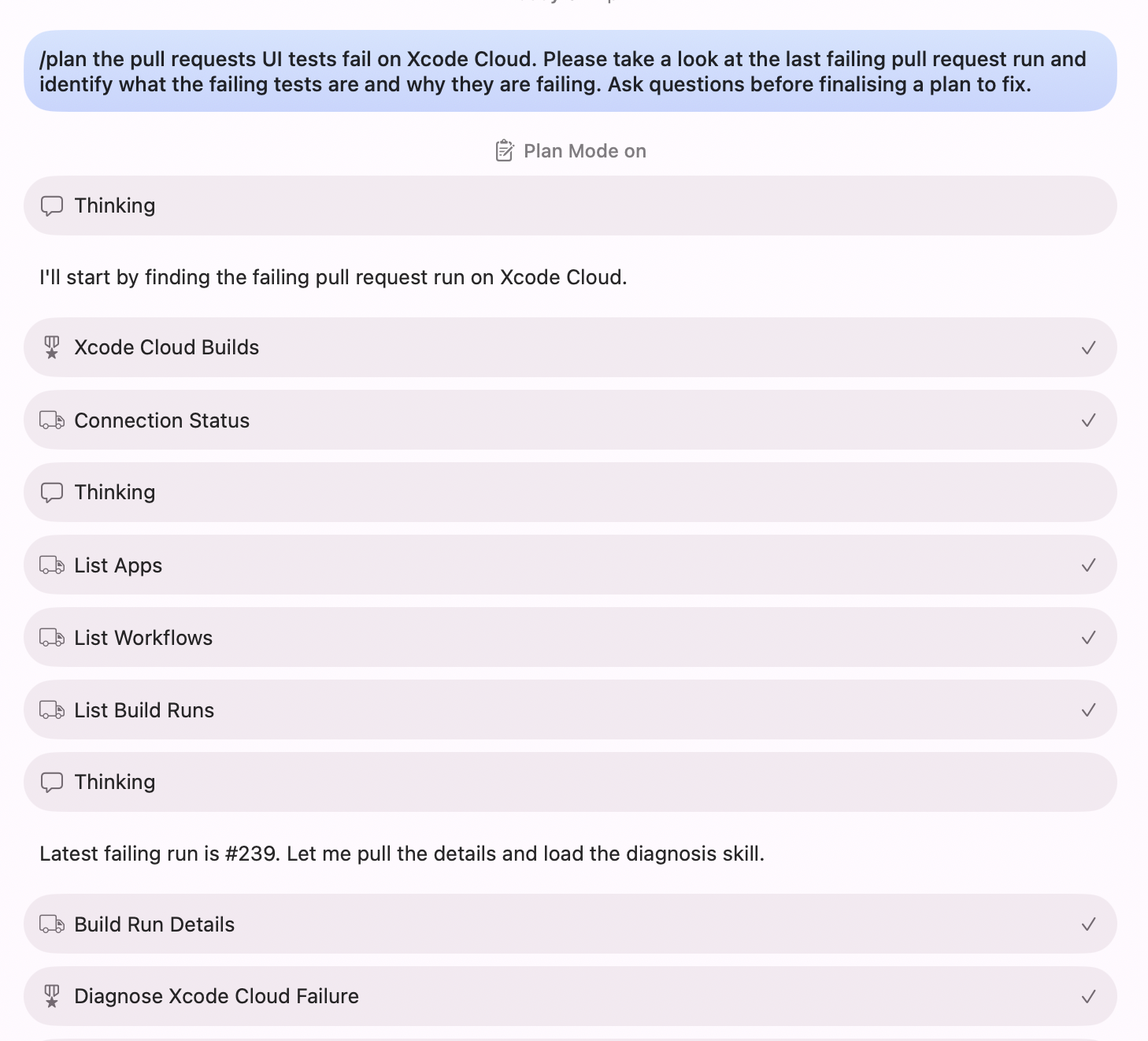

From then on the assistant reaches for the plug-in on its own whenever a
question is about builds.

<figure class="screenshot screenshot-wide">
  <img src="/assets/guides/using-mobile-builds-from-xcode/07-skill-usage.png" alt="Xcode's assistant working through a failing pull request run, calling the Xcode Cloud Builds skill and the connection, apps, workflows and build run tools in turn">
</figure>

- **Apps, workflows and run history** — status, branch, commit, duration, and
  what triggered each run.
- **Why a run failed** — the failing step, the result bundle downloaded and
  read, and the source lines rebased onto your working copy so they match the
  file open in front of you.
- **Why nothing is answering** — the connection check above.

Everything the plug-in does is read-only. Starting, re-running and cancelling
builds still happen in the app — see [Starting a build from your phone](/guides/starting-a-build-from-your-phone/).

## If you need a different port

The MCP server binds port `8723` by default, and the menu bar helper shows the
endpoint it actually bound. To point Xcode somewhere else, edit the
`mobile-builds` entry under **Settings → Intelligence → MCP servers**. Editing
a project's `.mcp.json` after the plug-in is installed does nothing — Xcode
already has its own copy of the configuration.

## In Claude Code

The same plug-in installs there with `/plugin install delightfulapps/mobile-builds-plugin`.
The skills arrive namespaced — `mobile-builds:xcode-cloud-builds` and the rest —
but they do the same work.
